Stamping Mold
Mar 01,2020 | Views: 5022
Stamping mold is the process to exert pressure on the blank so that the blank will undergo steel transformation or separation to produce workpieces with fixed sizes, shapes and properties, stamping process can be divided into separating and forming.
Common stamping process
1. Separating Process
| Process | Diagram of process | Diagram of mold |
|---|---|---|
| Blanking |  |
 |
| Cutting |  |
 |
| Piercing |  |
 |
| Lancing |  |
 |
| Trimming |  |
 |
| Parting |  |
 |
| Shaving |  |
 |
2. Forming Process
|
Process |
Diagram of process | Diagram of mold |
|---|---|---|
| Bending |  |
 |
| Edge Coiling |  |
 |
| Curling |  |
 |
| Drawing |  |
 |
| Ironing |  |
 |
| Embossing |  |
 |
| Flanging |  |
 |
| Bulging |  |
 |
| Necking |  |
 |
| Flaring |  |
 |
|
Restriking (three-dimensional) |
 |
 |
|
Restriking (Planishing) |
 |
 |
| Printing |  |
 |
| Twisting |  |
 |
| Cold Extruding |  |
 |
| Upset Forging |  |
 |
| Spinning |  |
|
The examples of stamping process
1. Manufacturing process of blanking
1-Punch; 2-Mold

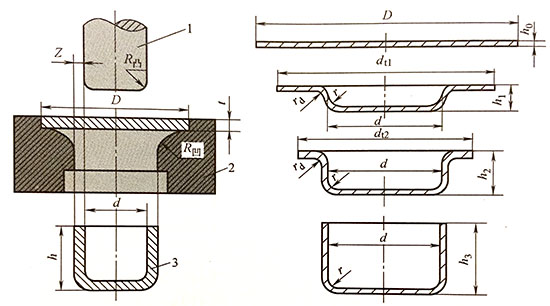

2. Manufacturing process of drawing
1-Punch; 2-Mold; 3-Workpiece
